MINEW SMART BADGE SERIES

More than just an ID card.

It’s your personal management assistant.

Transforming Personnel Management in the Digital Age

As digital transformation accelerates, the need for smarter personnel management grows. From factories and hospitals to campuses and construction sites, organizations increasingly rely on digital tools to enhance safety and coordination.

Minew’s Smart Badge Series addresses real-time tracking, access control, emergency response, and patrol traceability. With technologies like BLE, LoRaWAN, GNSS, LTE, RFID and NFC, it offers reliable, cost-effective solutions across diverse environments—empowering enterprises with intelligent operations and safety compliance.

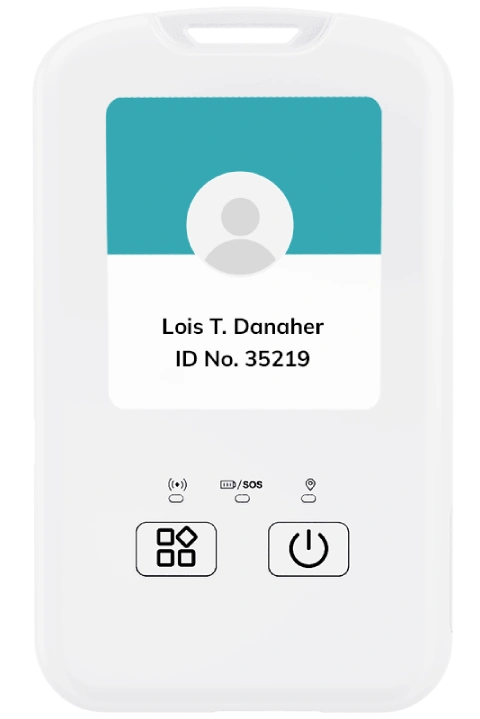

Traditional ID Cards vs. Minew Smart Badges

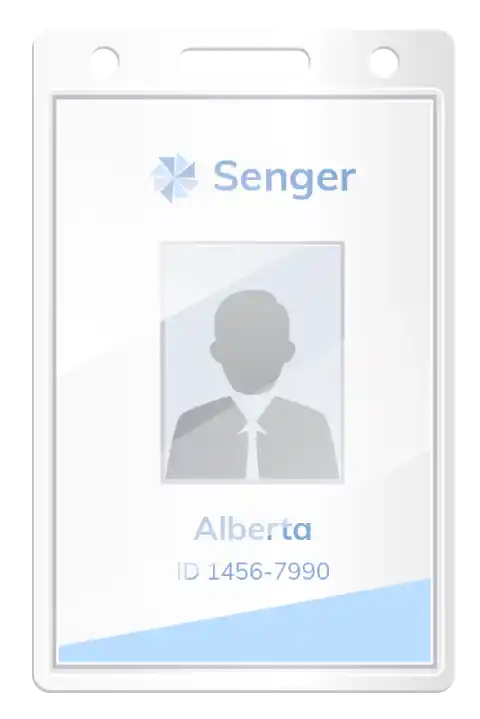

Basic swipe card
No location tracking
Cannot visualize location
No alert mechanism
No behavioral data
Limited to access or timekeeping

RFID / NFC support with multiple access options
BLE & GNSS hybrid positioning
Live personnel movement visualization
One-touch SOS for instant emergency activation
Auto-logging of patrols, check-ins, etc.
Suited for healthcare, industry, campuses, events

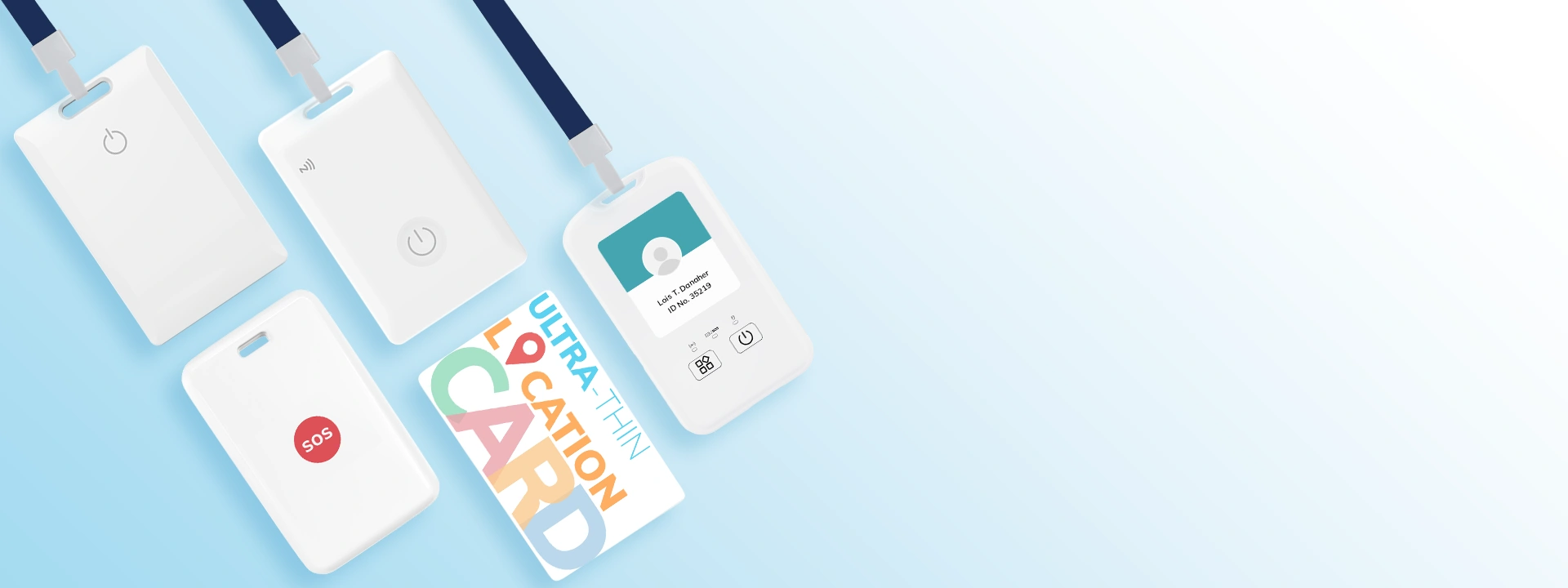

Meet Smart Badge Family

A Compact but Multi-use Card Beacon

C10 Card Beacon

A stylish, multi-purpose card beacon with Bluetooth LE 5.0, ideal for personnel management, indoor positioning, and emergency help via panic button.

Bluetooth LE 5.0

Panic button

Accelerometer included

RFID (NFC) option

Waterproof IP65

Secure, Ultra-Thin, and Customizable!

MWC02 Ultra-thin Location Card

An ultra-thin NFC-enabled location card designed for easy carrying in wallets or card holders, perfect for secure personnel control.

1.3 mm ultra-thin

IP67 ratings

Built-in NFC

Above 2-year service life

Customizable patterns & logo

A Powerful Personnel Management Tool

MWC01 Bluetooth Rechargeable Badge

A rechargeable smart badge (Bluetooth LE 5.1 or 5.0 versions) with RFID support, external button, and vibration alert for accessibility and status reporting.

Smart magnetic charging

Bluetooth LE

Multiple RFID frequencies

User-friendly vibration motor

Your Go-To Solution for Indoor & Outdoor Location

MWC03 Bluetooth LTE Location Badge

An advanced GNSS, Bluetooth, and LTE-enabled badge for seamless real-time tracking across outdoor and indoor areas, with RFID and magnetic charging.

GNSS and Bluetooth positioning

Intelligent positioning system switching

Real-time data upload via cellular networks

NFC access control

Easy magnetic charging in a snap

BLE Signal Scanning & Collection with LoRaWAN Uplink

LWC01 LoRaWAN Personnel Badge

A compact LoRaWAN personnel badge with Bluetooth positioning, accelerometer, and SOS button, offering long-range tracking and emergency alerts.

Standard LoRaWAN protocol

Bluetooth real-time positioning

Built-in accelerometer

SOS alarm button

Easy magnetic charging

Typical Use Cases

C10 Card Beacon

Enhanced Patient Safety in Healthcare Facilities

C10 badges are typically used in healthcare centers where elderly or high-risk patients need real-time indoor tracking. The built-in SOS button allows instant alerts, helping staff respond quickly to falls or emergencies, and improving incident response rates significantly.

MWC02 Ultra-thin Location Card

Visitor Management at High-Traffic Venues

MWC02 is often used as a lightweight and secure visitor pass in high-volume venues such as exhibitions or secured facilities. It offers BLE-based positioning and NFC access authentication while remaining discreet and comfortable to wear.

MWC01 Bluetooth Rechargeable Badge

Smart Personnel Management for Offices

MWC01 is a card-style badge designed for modern workplaces, featuring built-in RFID for efficient check-in, activity monitoring, and access management. It enables companies to track department-level staff movement patterns, optimize workspace allocation, and assign area-specific permissions using geofencing. With BLE positioning and optional tactile feedback, MWC01 supports secure visitor access, improves office safety, and enhances privacy control—making it a key tool in intelligent personnel management systems.

MWC03 Bluetooth LTE Location Badge

Real-Time Staff Safety & Emergency Response

MWC03 is built to support staff safety across environments where personnel operate alone or in distributed areas. By combining GNSS, BLE, and LTE connectivity, it enables real-time indoor and outdoor positioning without relying on local gateways. In critical situations, the built-in panic button lets workers instantly trigger emergency alerts with their precise location—ideal for hotels, hospitals, cleaning services, and other workforce safety use cases.

LWC01 LoRaWAN Personnel Badge

Worker Tracking Across Distributed Facilities

LWC01 helps enterprises monitor worker locations across large-scale sites such as manufacturing or industrial complexes. With its kilometer-level LoRaWAN communication and rechargeable battery, it supports reliable, low-maintenance personnel tracking with built-in SOS.

How to Choose the Right One?

Specification	C10 Card Beacon	MWC02 Ultra-thin Location Card	MWC01 Bluetooth Rechargeable Badge	MWC03 Bluetooth LTE Location Badge	LWC01 LoRaWAN Personnel Badge
Positioning	BLE	BLE	BLE / BLE AoA	GNSS + BLE	BLE
Communication	BLE	BLE	BLE	LTE + BLE	LoRaWAN
Power	Li-Poly Battery	Li-Poly Battery	Rechargeable	Rechargeable	Rechargeable
Access Control	RFID / NFC / UHF (optional)	NFC	RFID / NFC / UHF (optional)	NFC	N/A
Protection Rating	IP65	IP67	IP67	IP65	IP65
SOS Button	Yes	No	Yes	Yes	Yes
Recommended for	Indoor use, patients, visitors	ID badge replacement, events	Offices, accessible design	Logistics, construction sites, remote areas	Campuses, patrols, large areas

Deployment Modes and Communication Combinations

AWS / Azure / Your Cloud

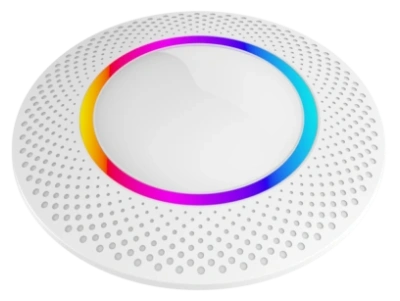

G1 IoT Bluetooth Gateway

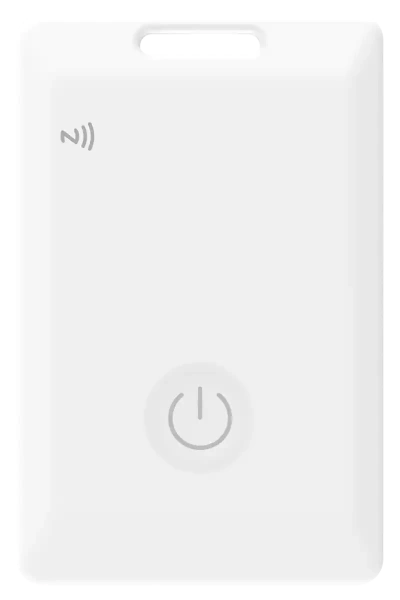

C10 Card Beacon
C10 and MWC02 badges continuously broadcast Bluetooth Low Energy (BLE) beacon signals. A nearby G1 Bluetooth gateway scans and collects these BLE signals, forwarding the data to the cloud via Wi-Fi or Ethernet. This simple BLE broadcasting + gateway-scanning setup enables indoor positioning and attendance tracking in real time.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

≤5m

Highlights

· Simple
· Cost-effective
· Easy to setup

· SOS Button
AWS / Azure / Your Cloud

G1 IoT Bluetooth Gateway

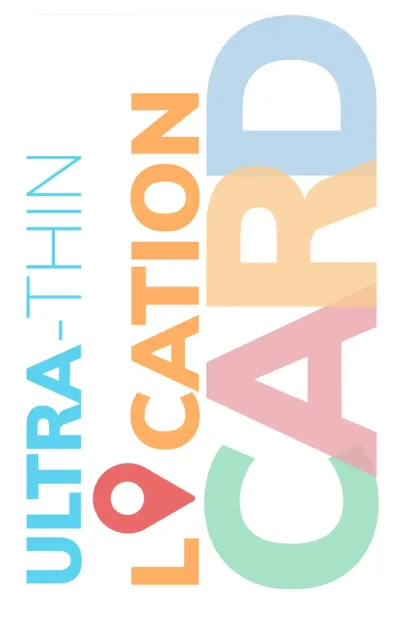

MWC02 Ultra Thin Location Card
C10 and MWC02 badges continuously broadcast Bluetooth Low Energy (BLE) beacon signals. A nearby G1 Bluetooth gateway scans and collects these BLE signals, forwarding the data to the cloud via Wi-Fi or Ethernet. This simple BLE broadcasting + gateway-scanning setup enables indoor positioning and attendance tracking in real time.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

≤5m

Highlights

· Simple
· Cost-effective
· Easy to setup
· Customizable patterns & logo
AWS / Azure / Your Cloud

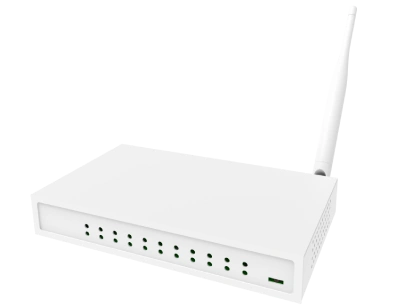

G2 AoA Gateway

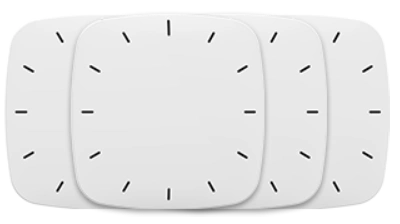

AR1 Locators * 4

MWC01 Bluetooth Rechargeable Badge (AoA Ver.)
This solution leverages Bluetooth 5.1 Angle of Arrival (AoA) technology to deliver sub-meter indoor positioning accuracy. The MWC01 AoA Smart Badge continuously broadcasts BLE signals, which are received by a network of AoA locators and processed by the G2 AoA gateway. This setup enables real-time personnel tracking with low latency, high device concurrency, and minimal infrastructure overlap.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

~0.5–1 m

Highlights

· Sub-meter precision
· Real-time AoA positioning
· High throughput
· Ideal for tracking staff or equipment in real-time
· Supports up to 1000+ packets/sec
AWS / Azure / Your Cloud

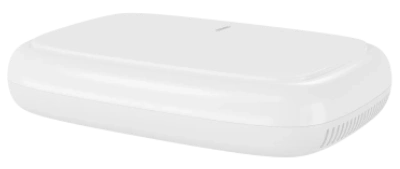

MG6 4G Bluetooth Stellar Gateway

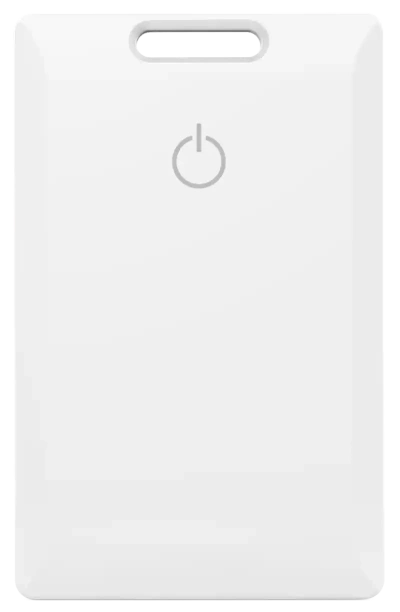

MWC01 Bluetooth Rechargeable Badge
MWC01 Bluetooth Rechargeable Badge periodically broadcasts BLE signals (including ID, status, button press, etc.), which are picked up by nearby gateways such as MG6 4G Bluetooth Stellar Gateway. It supports location by RSSI zone mapping or as a digital ID for attendance or status monitoring.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

≤5m

Highlights

· Haptic feedback
· SOS button
AWS / Azure / Your Cloud

MG6 4G Bluetooth Stellar Gateway

MWC01 Badge Bluetooth Repeater

Beacons
Beacon tags broadcast BLE location signals that can be collected by an MWC01 badge. The MWC01 badge comes in standard and relay versions. In relay mode, it acts as a Bluetooth repeater: it receives beacon data and rebroadcasts it to an MG6 gateway via BLE. The MG6 gateway aggregates these signals and uploads them over Wi-Fi, Ethernet, or 4G/LTE to the cloud. This BLE relay setup extends gateway coverage without requiring additional network hardware.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

≤5m

Highlights

· Extends coverage via relaying
· Flexible layout
· Vibration feedback
· Reduce the deployment of gateways
AWS / Azure / Your Cloud

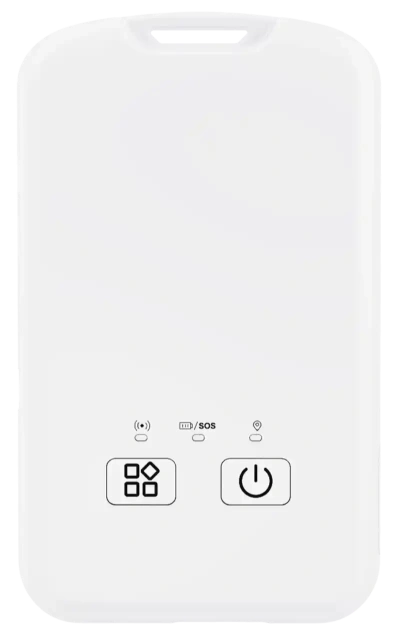

MWC03 Bluetooth LTE Location Badge

Beacons
The MWC03 badge includes a built-in 4G LTE cellular modem, so no external gateway is needed. It scans nearby BLE beacons and sends the data directly to the cloud over the cellular network. This setup enables very fast deployment and real-time data transmission. With LTE’s high bandwidth (1–150 Mbps), the MWC03 can support many concurrent connections, making it ideal for high-traffic scenarios.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

≤5m

Highlights

· No gateway needed
· Real-time data
· Indoor & outdoor positioning
· Multi-functional buttons
AWS / Azure / TTN / Chirpstack / Your Cloud

LG1 LoRaWAN Gateway

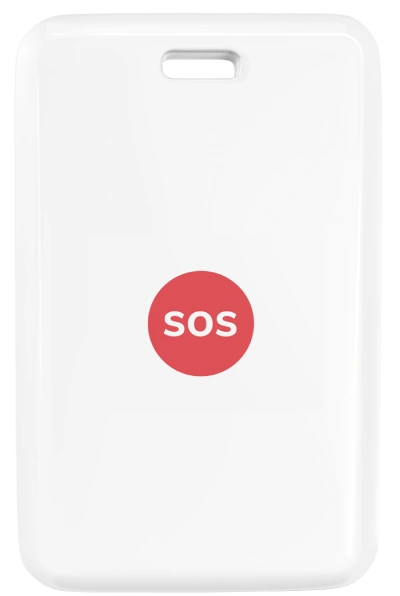

LWC01 LoRaWAN Personnel Badge

Beacons
The LWC01 badge is a LoRaWAN-based device well suited for wide-area deployments. It scans BLE beacons and uplinks their data via LoRaWAN to LG1 gateway (which then forwards to the cloud). This relay solution requires no SIM cards or cellular data fees, and consumes very little power (multi-year battery life), making it ideal for campus-scale attendance tracking. In summary, LoRaWAN’s low-power, license-free approach makes it highly cost-effective for large-scale deployments.
Deployment Cost

Data Timeliness

Power Consumption
Recommended Scenarios
Positioning Accuracy

≤5m

Highlights

· No data fees
· Long battery life
· Over 2km communcation range
· SOS alarm button

FAQ

What is the difference between a Smart Badge and a traditional ID card?

Smart Badges integrate positioning, communication, and emergency functions—such as real-time tracking, access control, SOS alerts, and motion detection—which go far beyond basic identification. This makes them ideal for safety-critical environments or workflow optimization.
Which Smart Badge is best for indoor positioning?

For indoor BLE-based tracking, the MWC01 (with AoA support) or C10 is recommended. The MWC03 provides the most precise hybrid indoor-outdoor positioning using both BLE and GNSS.
Can I use these badges without existing infrastructure like Wi-Fi or Ethernet?

Yes. The MWC03 uses LTE for direct uplink, while LWC01 works on LoRaWAN networks—both are suitable for environments with limited or no Wi-Fi or Ethernet infrastructure.
Are these badges waterproof?

Yes. All models in the Smart Badge Series feature at least IP65 or IP67 protection, making them durable in dusty or humid environments.
How do I choose the right Smart Badge for my application?

It depends on your environment and needs:
For GPS-based outdoor tracking: MWC03.
For BLE indoor location with access control: MWC01 or MWC02.
For long-range low-power deployments: LWC01.
For basic BLE broadcasting and SOS: C10.
Can Smart Badges be customized with our logo or design?

Yes. Models like MWC02 support custom patterns and logos, ideal for enterprise branding and visitor badge personalization.
