MST03 Asset Temperature Logger

Temperature Tracked, Assets Located.

 MST03 Asset Temperature Logger

MST03 Asset Temperature Logger measures and tracks asset temperature and location throughout transportation or storage. The device features a low-power Bluetooth chip and sensors, allowing for continuous temperature measurement and alarms when temperatures exceed normal or low ranges. The asset temperature logger stores up to 60,000 series temperature data and allows users to generate data reports in PDF & Excel report format as proof during logistical transit.

  • Real-time temperature measurement
  • Temperature alert record
  • Asset location
  • 60,000 temp data storage
  • IP67 waterproof & dustproof
  • 2-year service life
  • PDF & Excel report
  • Batch device management

Real-time Temperature Monitoring & Location Tracking

Real-time Temperature Monitoring & Location Tracking

Maintain temperature integrity with regular updates, which is critical for product quality and safety during transit or storage. Track asset location in real-time to optimize logistics and reduce risk of loss. Customize temperature alert levels for both normal and low-temperature ranges to receive timely notifications of temperature deviations.

Designed for Durability

Designed for Durability

Featuring IP67-rated waterproofing, the logger safeguards assets against environmental elements, ensuring reliability in diverse conditions. With a 2-year service life, reduces operational disruptions and maintenance costs.

Expanded Options and Large Data Collection

Expanded Options and Large Data Collection

MST03 offers 2 options for selection: the temperature sensor and the thermistor for versatile temperature data collection, capturing ambient or object temperatures. Besides, with external flash support, the logger stores up to 60,000 temperature data points for comprehensive monitoring.

Cost-effective and Eco-friendly Design

Cost-effective and Eco-friendly Design

In contrast to traditional plastic tag materials, the MST03 has a unique layout that emphasizes sustainability and savings. It not only speeds development cycles but also adds to considerable cost savings while keeping to eco-friendly concepts.

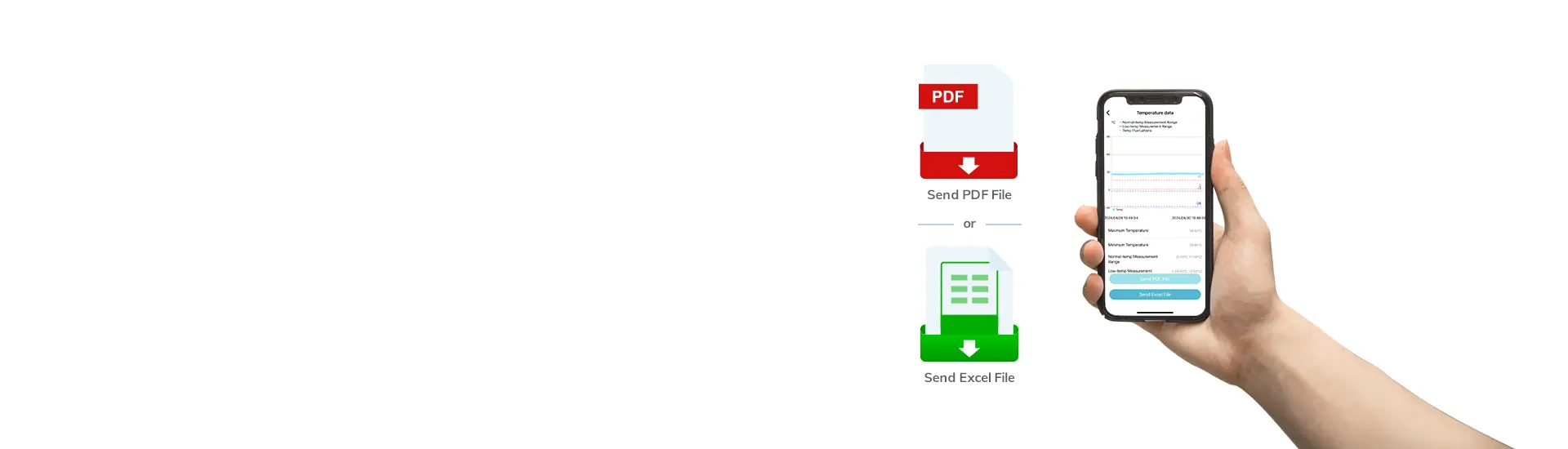

Data Reports for Analysis

Data Reports for Analysis

Integrate with the MSensor app for effortless data management and analysis. Compatible with iOS and Android devices, the app enables real-time temperature monitoring, alerts, and report export. Generate visualized PDF & Excel report format data reports with ease for informed decision-making. Additionally, the firmware supports bidirectional connectivity protocols, enabling batch device management when integrated with Minew gateway and TagCloud 3.0.

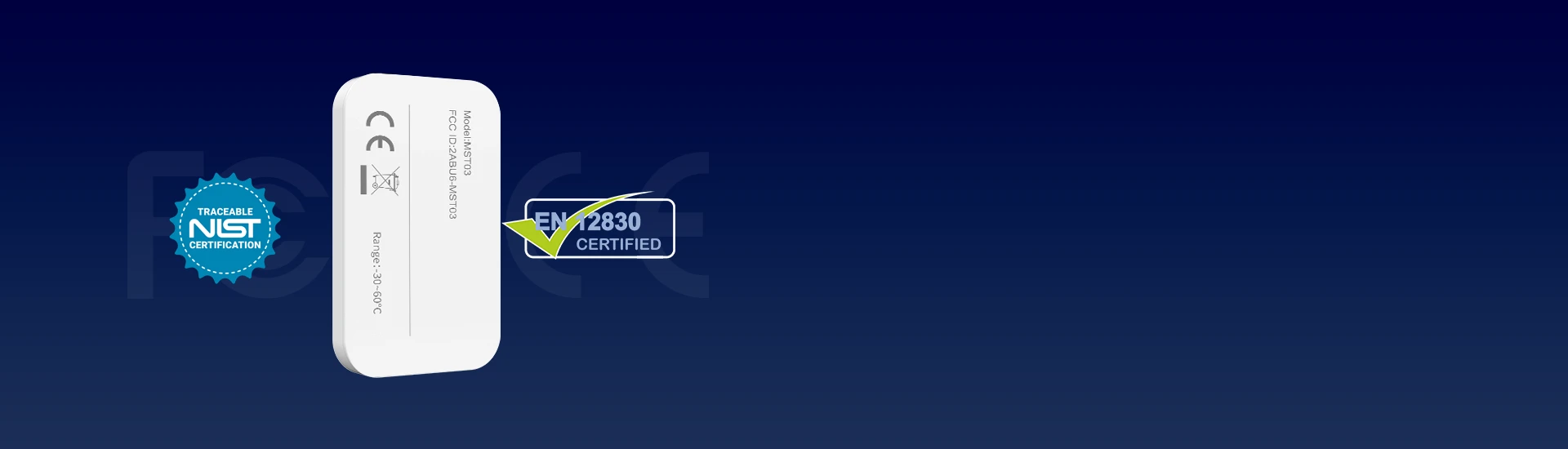

EN 12830 Certified

EN 12830 Certified

Certified with EN 12830 standards, the MST03 ensures compliance with strict quality and performance demands. This certification confirms its reliability in temperature monitoring applications, especially within the logistics and cold chain industries.

Seamless Solutions for Diverse Scenarios

Cold Chain Transportation
Warehouse Management
Pharmaceutical Industry
Food Industry

Specifications

MST03 dimensions
* For precise measurements, please refer to the physical object.
Color White (customizable)
Weight 6.8 g
Resistance IP67
Battery Coin battery, 210 mAh
Service life 2 years (default setting)
Temperature measurement options Temperature sensor or thermistor
Sensor measurement accuracy -30℃ ~ 40℃:±0.1℃ ~ 0.3℃ (Temperature Sensor) / ±0.5℃ ~ 1℃ (Thermistor)
OTA Yes
Configuration app MSensor
Operating temperature -30 ℃ ~ 60 ℃
Accelerometer Optional
Chip nRF52 series
Bluetooth version Bluetooth® LE 5.0
Temp data storage Up to 60,000 series
Temp report format PDF & Excel report
