MSP01 Bluetooth® PIR Sensor

Human body sensing

MSP01 Passive infrared sensor (PIR sensor) MSP01 Bluetooth® PIR Sensor

MSP01 Bluetooth PIR Sensor is a passive infrared sensor supporting Bluetooth® LE 5.0 technology, mainly designed for body movement monitoring indoors. It translates the PIR signal from the human body or pets received by the pyroelectric infrared sensor inside to the voltage signal for alerts. Users can either detect indoor environments anytime through their mobile phones or check the data received by the gateway remotely.

  • nRF52 Series & Bluetooth® LE 5.0
  • 3 Customized Monitoring Periods
  • 2 Years Lifetime & Replaceable Battery
  • Alarm Time Configurable
  • PIR, ACC, T & H Sensors Included
  • Angles Adjustable with Rotating Bracket

How it works

MSP01 Passive infrared sensor body movement monitoring process
Easy to install & deploy

Easy to install & deploy

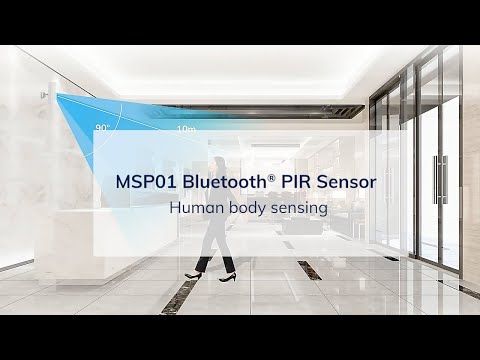

It supports flexible installation methods on the wall or ceiling. The detection distance is 10 meters, and the detection angle range can be adjusted in multi-directional rotation within 90°.

Customized configuration & personalized design

Customized configuration & personalized design

Users can customize parameters such as infrared detection time period and alarm time BeaconSET+. It supports OTA upgrade and customization services.

Equipment linkage & remote monitoring

Equipment linkage & remote monitoring

Mobile phone terminals can be used for detection. Remote monitoring can also be realized in combination with the gateway.

Detect and alarm

Detect and alarm

The built-in PIR can sense the infrared signal of the human body and convert it into a voltage signal to trigger detection and alarm.

Multi-sensor for wide scenarios

Multi-sensor for wide scenarios

Built-in PIR, ACC, and temp & humidity sensors. Detect the motion state of the item, and detect the surrounding temp & humidity.

Specifications

MSP01 Passive infrared sensor (PIR sensor) Specification dimensions
* For precise measurements, please refer to the physical object.
Color White
Operating Temperature -15~50℃
Net Weight 96g+10g (Battery & Accessories included)
Material ABS
Device Firmware iBeacon & Eddystone(Default)
Mesh(Optional)
Tamper-proof
OTA(Optional)
Chip nRF52 series
Battery 2 pcs AA batteries, 2900mAh capacity in total
Sensors PIR, Accelerometer, Temperature & Humidity Sensors (Included)
