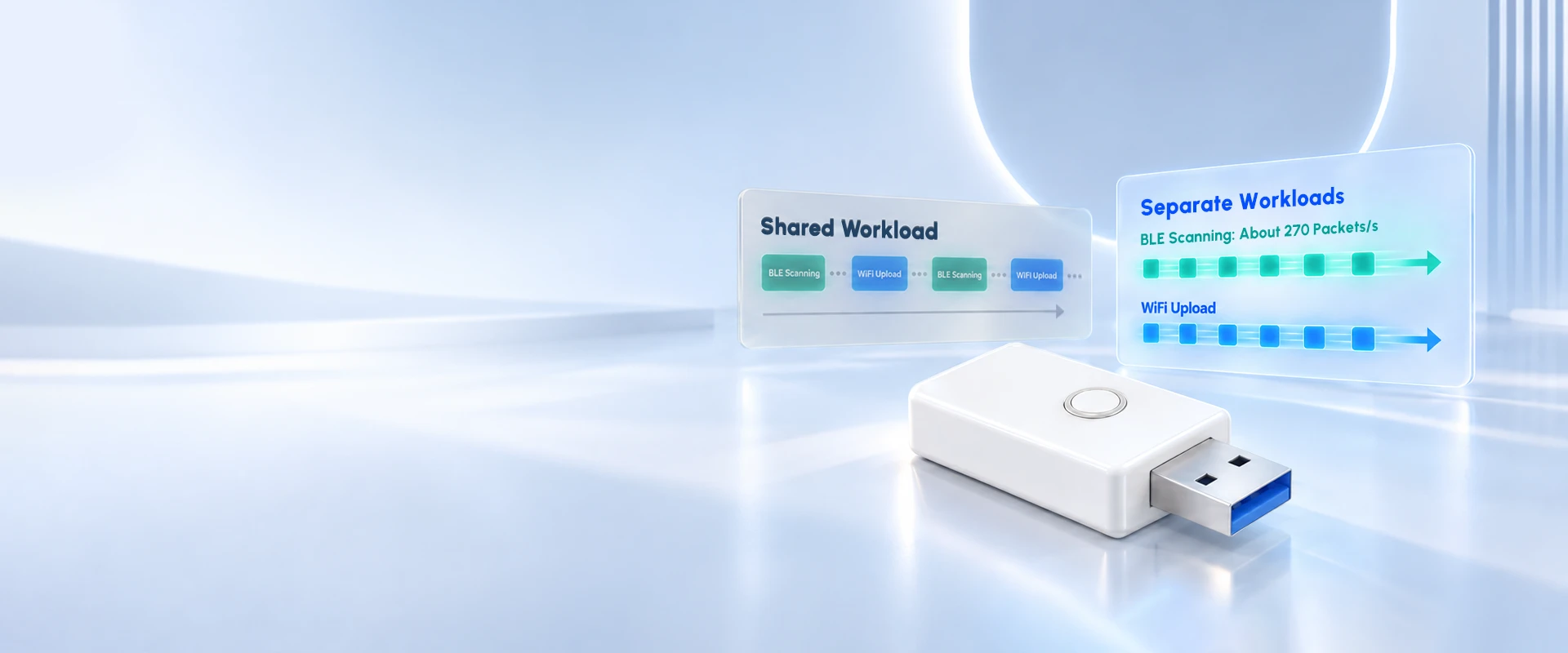

MG11 uses a dual-chip architecture with dedicated processors for Wi-Fi and Bluetooth communication. By separating Wi-Fi and BLE workloads, the gateway frees the Bluetooth processor to focus on high-performance scanning while maintaining stable data transmission over Wi-Fi.

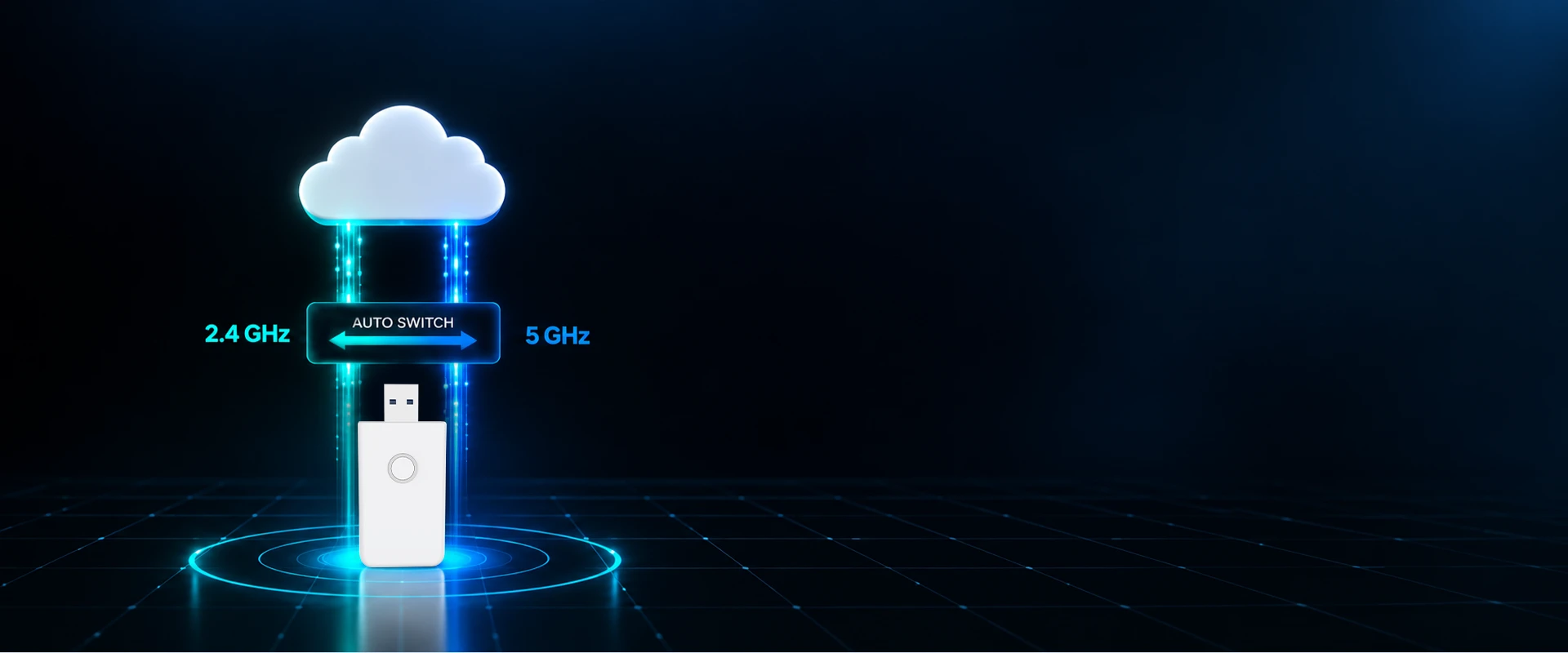

MG11 supports dual-band WiFi 6. The 2.4 GHz band provides wider coverage, while 5 GHz moves uploads away from WiFi, BLE, and Zigbee traffic sharing the lower band. This reduces the risk of delayed or interrupted data delivery. If interference prevents an upload or drops the WiFi connection, MG11 switches to the other band so data can continue to the server.
Plug MG11 into a standard USB source and connect it to WiFi. A new collection point does not require Ethernet at the installation spot. Its compact housing takes little space around the USB source and can be relocated when coverage needs change.

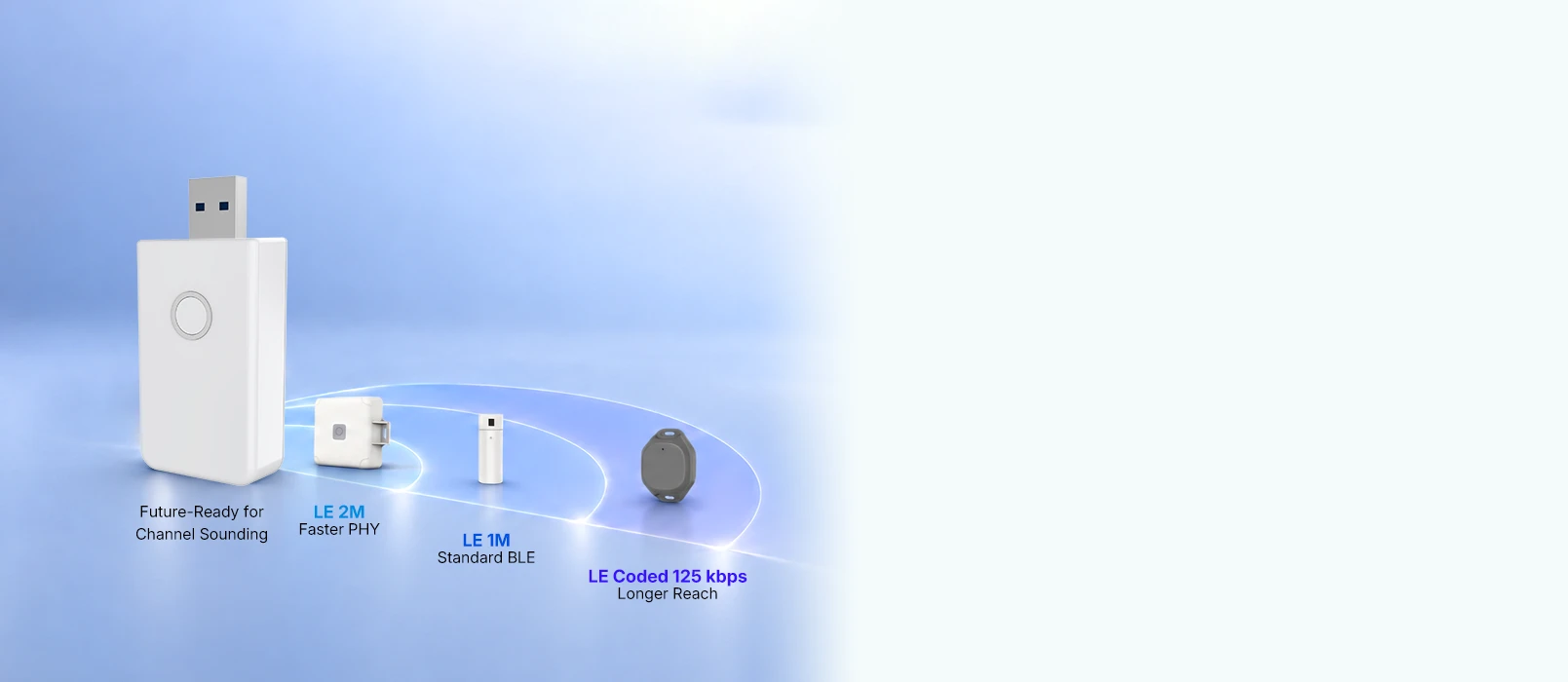

MG11 supports LE 1M, LE 2M extended advertising, and 125 kbps LE Coded PHY. It can scan standard beacons and compatible devices that use faster or longer-range radio modes. That gives deployment teams room to balance range, response time, and device compatibility.
Channel Sounding capability is built into MG11’s Bluetooth 6.0 hardware, opening new possibilities for precise ranging and proximity applications.

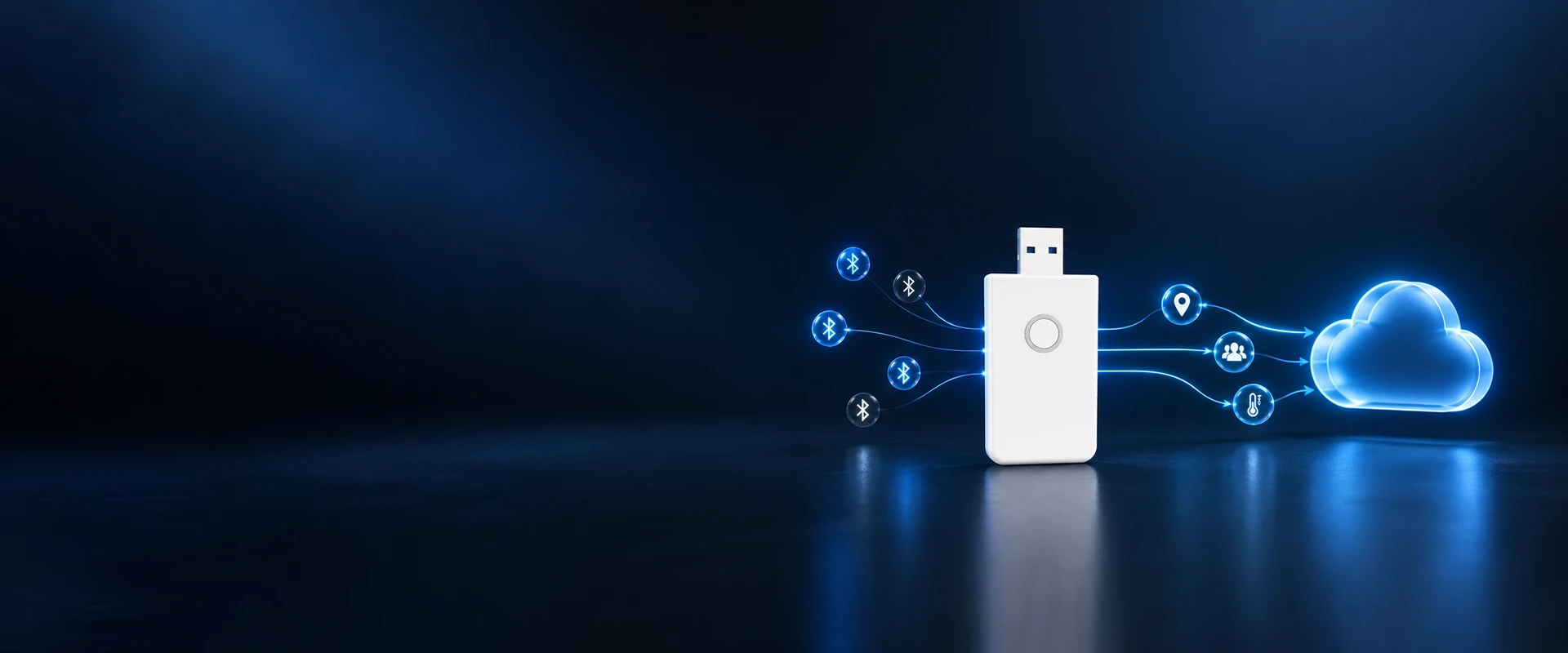

MAC filtering and RSSI thresholds can remove irrelevant broadcasts before they become cloud traffic. For large beacon fleets, that means less bandwidth spent on irrelevant BLE traffic, fewer records for the server to process, and a cleaner data stream for asset tracking, occupancy, and sensor monitoring applications.

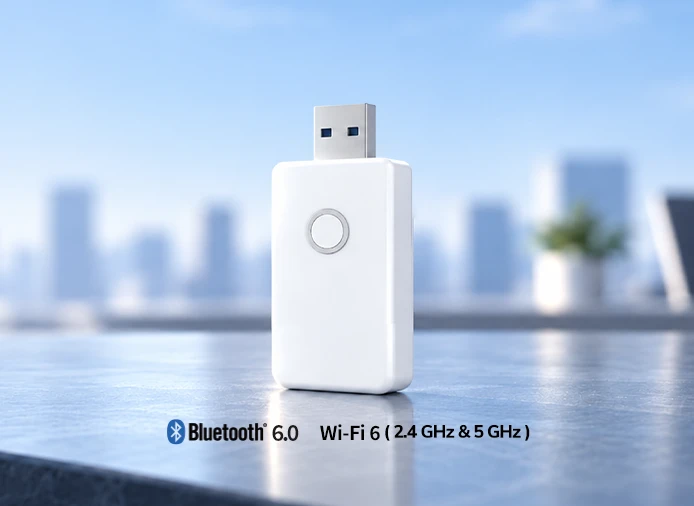

A new generation of compact gateways designed to make IoT connectivity simpler, smarter, and easier to deploy.
Not every IoT deployment needs a full-size gateway. Some sites only need a compact collection point near hard-to-reach devices.
In astronomy, a nova is a star that suddenly shines much brighter, making a faint point visible across a vast distance. The NOVA Series follows the same idea, bringing nearby IoT data into view with a compact device.
Fills coverage gaps
Small footprint
Less cabling
| Bluetooth Version | Bluetooth LE 6.0 |
| Bluetooth Chipset | nRF54L15 |
| BLE Scan Range | Approx. 150 m in open space |
| BLE Scan Capacity | Approx. 270 advertising packets per second |
| Wi-Fi Standard | IEEE 802.11 b/g/n/ax |
| Wi-Fi Bands | 2.4 GHz and 5 GHz |
| Wi-Fi Security | WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSKWPA3_PSK/WPA2_WPA3_PSK |
| TX Power | +20 dBm |
| Operating Temperature | -20 °C to 55°C |
| Operating Humidity | 10%-95% RH, non-condensing |
| Power Supply | USB, DC 5 V / 1 A |
| Installation | USB plug and play |
| Power Control | The device turns on when connected to power and turns off when disconnected. |
| Firmware Updates | OTA and LAN |
