P1 Plus Robust Beacon

P1 Plus Robust Location Beacon is extraordinarily durable, with high waterproof and shockproof for location and tracking in a variety of harsh environments. P1 Plus is capable of solving the industrial issues on insufficient working efficiency in finding objects, allocating resources, intelligent tracking and monitoring, and especially suitable for use in wet, ultra cold and high temperature applications.


Key Features

Bluetooth® LE 5.0

Bluetooth® LE 5.0

Magnetic switch

Magnetic switch

Sensors compatible

Sensors compatible

IP68 Dust & Waterproof

IP68 Dust & Waterproof

IK09 Shockproof

IK09 Shockproof

Great performance even in the harsh environments

Featured with IP68 dustproof & waterproof, IK09 shockproof and high temperature resistance, P1 Plus has strong anti-environmental ability with working temperature of -40℃~85℃, perfect for industrial environment while maintaining stable product performance.

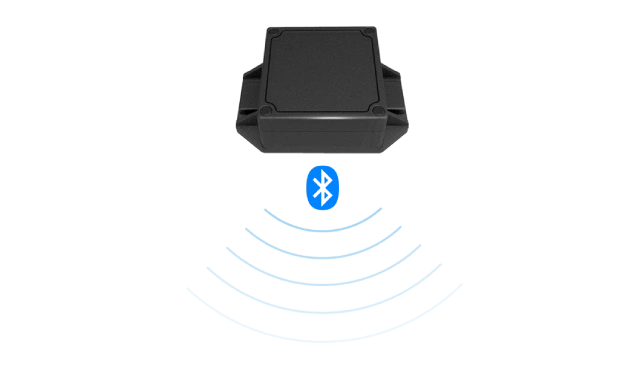

Reach longer distance with lower energy consumption

The low energy consumption nRF52 chip brings performance improvements, Bluetooth 5.0 compatibility. P1 Plus also supports multi-channel broadcasting, such as iBeacon, Eddystone and Sensor data with broadcasting range up to 70m.
1 4

No more accidentally shut-down after using magnetic switch

The function of magnetic switch is configurable, convenient and simple to operate. The blue light indicates successful operation. This function can prevent from accidental device shutdown, and failing to get broadcast information or retarding work efficiency.
2 4

Extend your solution with accelerometer & temperature sensors

Support acceleration sensors to provide protection and tracking for large-scale and valuable assets, and temperature sensors for real-time detection of environmental temperature. The threshold alarm can be set to ensure the functionality and quality.
3 3

Get the excellent performance for long service

Industrial-grade battery, streamlined firmware and the latest Nordic low energy chipset, enable P1 Plus up to 44 months battery lifetime. The low voltage alarm in red light flashing reminds to timely replace the battery so as to ensure normal use.
4 2

Multiple options to install

Mounted by double-sided adhesive or screw. The design of external screw hole makes the installation more solid and safer. Also, flexible deployment without wires is cost-effective.
5 2

Design your own robust beacon

Users can configure broadcast parameters, alarm thresholds, trigger types and other configurations through the App. OTA software upgrading and logo labeling services are available.
6 3
  • Technical Data
  • Customization
  • Download File


Size 69.6×47.6x24mm
Weight 52.2g
Color Black
Materials PC
Bluetooth BLE 5.0, nRF52
Device Firmware iBeacon & Eddystone(Default)
Battery Lithium battery
Battery Life Up to 44 months (Ref.)
Battery Capacity 1200mAh
Operating Temperature -40℃ to 85℃
