Factory/Logistics Hub
Digitalizza e semplifica la gestione degli asset all'interno della tua organizzazione.

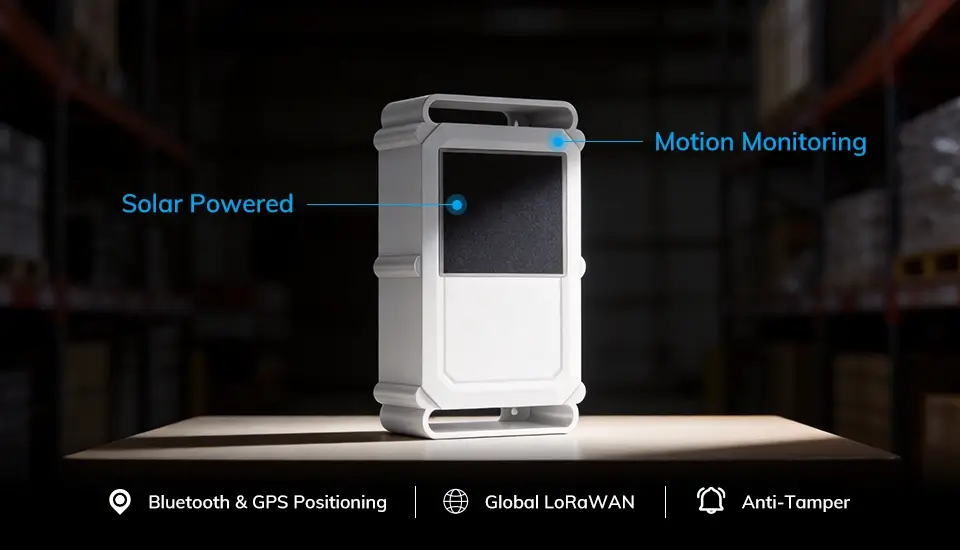

The LTB01-S LoRaWAN Solar-Powered GPS Asset Tracker bridges the gap with an intelligent dual-positioning system that seamlessly switches between indoor BLE scanning and outdoor GPS tracking. Engineered for enterprise asset management, industrial logistics, and livestock monitoring, this compact device eliminates blind spots entirely. Equipped with solar power capabilities and advanced anti-tamper security, the LTB01-S ensures your critical property remains visible and protected around the clock without the need for frequent battery replacements or maintenance.
- Supporto globale di frequenza di Lorawan
- 2km+ (1.2+ Miglia) Lungo raggio in aree aperte
- Doppio posizionamento BLE e GPS
- Solar-Powered & Built-in Battery
- Motion and Tilt Monitoring
- Allarme antimanomissione
Never Lose Sight of Assets Anywhere
Tracking data should not freeze when a truck moves from the open highway into a concrete warehouse. The LTB01-S bridges this gap by combining GPS and BLE dual-positioning technology. It automatically switches tracking modes to ensure uninterrupted supply chain visibility.
Solar-Powered for Low Maintenance
Frequent battery replacements at remote sites or pastures are costly. The LTB01-S solves this with solar power that constantly recharges the device using natural light, ensuring reliable tracking while reducing long-term maintenance expenses.
Advanced Status and Impact Sensing
Rough handling during transit or early signs of forced entry often go unnoticed. The LTB01-S senses micro vibrations instantly, alerting you to severe impacts or unauthorized tampering before your assets suffer hidden damage.
✔ Motion Detection
✔ Vibration & Tilt Monitoring
Trasmissione a lungo raggio
This multiband device supports nearly all frequency bands in global regions with Tecnologia LoRaWAN. Use the LTB01-S asset tracker to build a scalable asset tracking solution based on the LoRaWAN network, con un raggio di comunicazione fino a 2 km (1.2 miglia).
Dynamic Reporting for Smarter Fleet Logistics
Get regular location updates or instant movement alerts. The LTB01-S combines dual reporting modes to keep your assets accurately tracked at all times.
Modalità periodica
Customize the report interval to regularly receive location updates.
Modalità movimento
Get instant notifications for movement tracking when the accelerometer is triggered.
Audible Anti-Tamper Alarm
The LTB01-S helps prevent theft by sounding a loud buzzer instantly if someone tries to forcibly detach the tracker. Its sensitive accelerometer detects unauthorized movement instantly to safeguard your critical assets.
Extended Power, Easy Charging
Minimize maintenance downtime. The LTB01-S pairs an efficient 2,000 mAh battery with snap-and-go magnetic charging, ensuring long-term asset visibility and effortless power replenishment.
Built for Different Tracking Needs
 |
 |
|
| Caratteristica / Specifica | LTB01-S (Solar & Dual-Mode) | LTB01-G (Standard GPS) |
| Primary Positioning | GPS & BLE dual mode (Seamless indoor & outdoor tracking) |
GPS single mode (Outdoor tracking) |
| Alimentazione elettrica | Solar-Powered & 2,000 Batteria ricaricabile da mAh | Built-in 2,400 Batteria ricaricabile da mAh |
| Charging Method | Magnetic charging and solar auxiliary charging | Ultra-low power long battery life (ricarica magnetica) |
| Maintenance Level | Zero or low maintenance | Low maintenance |
| Advanced Sensing | Tilt and motion detection | Motion and displacement detection |
| Meglio per (Applicazioni) | • Warehouse & indoor-outdoor logistics • Long-term remote asset tracking • Livestock monitoring on vast pastures |
• Standard global fleet management • Container and bulk goods oversight • Shared bicycle systems |
| Common Specs | Protocollo LoRaWAN, global multiband support, Sopra 2 km (1.2 miglia) allineare, IP65 weatherproof rating | |
Casi d'uso
-
-
Gestione della flotta
Real-time location updates to ensure cargo arrives on schedule.
-

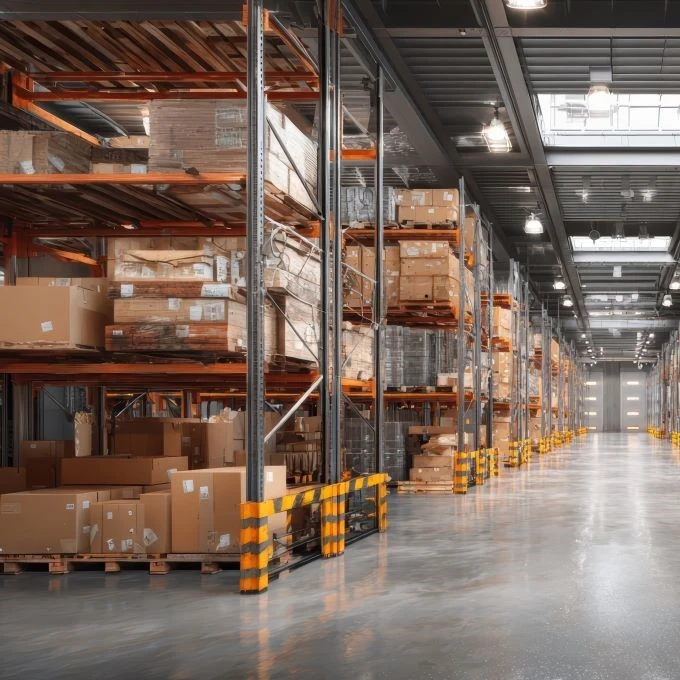

Magazzino
Individua e controlla immediatamente le scorte.
-
Contenitore
Monitorare le spedizioni da porto a porto con affidabilità GPS.
-
Biciclette condivise
Previeni i furti e aiuta a ottimizzare la distribuzione delle biciclette condivise.
Specifiche
| Informazioni di base. | |
|---|---|
| Dimensioni | 111mm * 65mm * 33.5mm |
| Grado di protezione IP | IP65 |
| temperatura di esercizio | -20da °C a 60 °C |
| Specifiche LoRaWAN. | |
| Protocollo | Standard LoRaWAN Protocol |
| Operating Frequencies | AS923, Au915, EU868, KR920, US915 (Optional multi-band support) |
| Gamma di comunicazione | Over 2km in open areas |
| Reporting Interval | 30 minuti (regolabile), with immediate reporting upon accelerometer trigger |
| Batteria | |
| Tipo di alimentazione | Rechargeable lithium battery and solar power |
| Capacità della batteria | 2,000 mAh |
| Modalità operativa | Classe A |
| Charging Method | Magnetic charging and auxiliary solar charging |
| Solar Input | 5V / 40mA |
| Durata della batteria | 1 mese (reporting every 30 minuti) 12 mesi (reporting every 12 ore) |
| Solar Self-Sustainability | Achieves continuous power with reporting intervals over 1 ora e 3 A 5 hours of 100,000 lux sunlight per day. |
| Specifiche hardware. | |
| Pulsante di accensione | Power-on via Button, Power-off via App |
| Metodo di posizionamento | GPS and Bluetooth (BLE) |
| Precisione di posizionamento | 5M (GPS) |
| Sensore | Sensore accelerometro |
Domande frequenti
-
Can it charge on cloudy days or under indoor light?NO. Solar charging requires direct and sufficient sunlight. It will not charge indoors or under overcast skies.
-
How is the anti-tamper alarm triggered and deactivated?The alarm triggers instantly when the anti-tamper switch on the back is released. This safety feature cannot be disabled or turned off.
-
Il 2 km (1.2 miglia) transmission range limit the tracking capability?The 2km+ (1.2+ miglia) range applies to standard open areas between the tracker and a LoRaWAN gateway. As long as your tracking route or ranch is covered by a standard global LoRaWAN network, your asset data can be uploaded from anywhere seamlessly.
-
What are the environmental limits for the IP65 rating?The IP65 rating provides complete protection against dust and low-pressure water jets (like rain). Tuttavia, it is not designed for prolonged submersion under water or high-pressure, high-temperature power washing.
